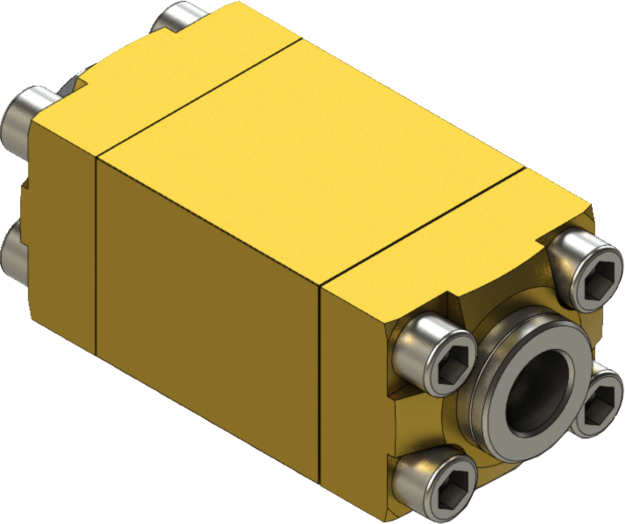

HPG 12 FI
Filter
- Medium : inert gases / rare gases / O2 / CO2 / air, other media on request
- Filter cartridge exchangeable
- Suitable for high-pressure oxygen service
- Approval : CTE 600 bar test
As market leader for high-pressure valves and systems for the gas filling industry we developed the new valve series HPG for 450 bar filling technology. These valves are designed for a service pressure of 600 bar. The filter HPG 12 FI has a filter cartridge through which the medium flows. The filter cartridge ensures that potential contaminations in the medium are filtered out. The material of the filter is hardly inflammable which guarantees the operational safety of your filling system in the long run.
Pressure range
PN 600
Standard connections
SW 1/2“
Nominal diameter
DN 12
Media temperature
from -20 °C to +65 °C
Ambient temperature
from -20 °C to +60 °C
Flow direction
A → B
Optionen Filterkartusche
15 µm 63 µm (standard; other filter sizes on request)
Kv-value
--- m³/h | --- m³/h
Weight
4,5 kg (including connection adapter)
